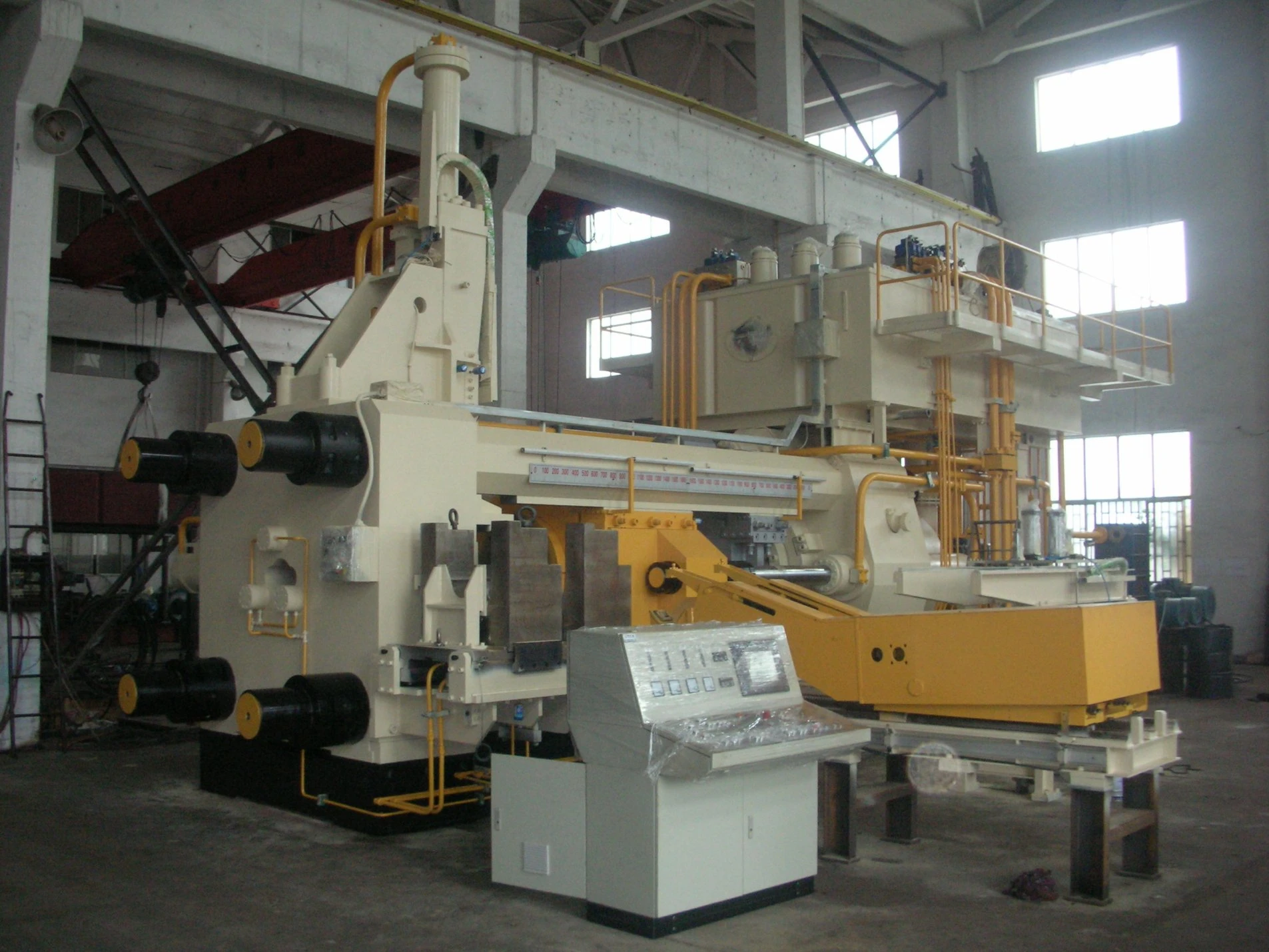

Top Aluminium Alloy Direct Extrusion Press


1.Product Description
No.ItemDescription
Billet Information
 Billet size114mm
 Max length600mm
Pressure and force
 Working pressure230-250kg/cm²
 Total force1087MT
 Main cylinderφ700mm
 Side cylinderφ180/φ130×2
 Container cylinder φ154
 Container lock210 kg/cm²              148MT
 Container open210 kg/cm²           92MT
 Shear cylinderφ160/φ100
210 kg/cm²           42MT
 Slide die cylinderφ120/φ70
120 kg/cm²            14MT
Stroke and speed
 Main piston stroke950mm
 Moveable beam forward speed390 mm/s
 Extrusion 0.2-18mm/s
 Moveable beam back260mm/s
 Container lock: 250mm/s
 Container open210mm/s
 Shear down:         320mm/s
 Shear up480mm/s
Pump
 Main pumpMain pump: variable axial plunger pump REXROTH SYHDFEN-1X/250 (MADE IN GERMANY) * 2 sets
 Auxiliary pumpvariable axial plunger pump A4VSO250 * 2 sets
(MADE IN CHINA)
 fixed quantity pump For cooling and filtration
2kg/cm²   22m³/min


2.After-Sale Service

Provide the best factory building support and machine design technical support, and after-sale support machine usage guide instruction, and field video guide.

If necessary we can send professional technicians there.
Top Aluminium Alloy Direct Extrusion Press


3.Company Introduction

Jiangsu Giant Ally Imp.&Exp.Co., Ltd. has been focusing on the aluminum extrusion industry for more than ten years,
It has served more than 100 aluminum extrusion manufacturers worldwide, with annual sales of nearly US$20 million. With excellent products and professional service levels, we enjoy a good reputation in the client, and have the honour to maintain year-on-year growth in the number of customers served and annual sales.

Current main products:
1. Aluminum extrusion production line (maximum 10000T) has high degree of automation, stable operation, and leading technology. It has been sold to Spain, Romania, Russia, Malaysia, Vietnam, Mexico, Colombia, the United States and other parts of the world;
2. Aluminum extrusion dies (annual output of 100,000 sets, maximum die size 1400mm), aluminum extrusion tools are also in the world's leading level in terms of output, quality, technology, etc., customers are distributed on five continents.

The above products are designed and produced by the parent company Jiangshun Technology Group.

In addition, with the parent company's influence in this field, we have also established good relations with many scientific research institutes and upstream and downstream professional manufacturers, so that we have professional integration in other equipment and auxiliary materials in the aluminum extrusion industry. Capabilities, including:
Melting and casting production lines, spraying and oxidation production lines, and other small-scale equipment for aluminum extrusion, as well as auxiliary materials necessary in various production links, etc., truly provide customers with one-stop service and procurement.

Adhering to the purpose of growing together with customers and creating value for customers wholeheartedly, we look forward to serving you and welcome any technical and business consultations.

To be with Giantally, to be a giant ally!
Top Aluminium Alloy Direct Extrusion Press

Top Aluminium Alloy Direct Extrusion Press


4.FAQ

I.What's the delivery time of your aluminum extrusion machine?

For ordinary small-sized machine such as saw, 30 days; middle-sized machine such as heating furnace, 45-50 days, for big-sized machine such as cooling system/profile handling system, 60 days. We could also design and make the whole production line for our customer, around 3-6 months.

II.What's your ordinary shipment method?

We can deliver the machine by land, or by ocean.

5.The Whole Aluminum Extrusion Line
Top Aluminium Alloy Direct Extrusion Press

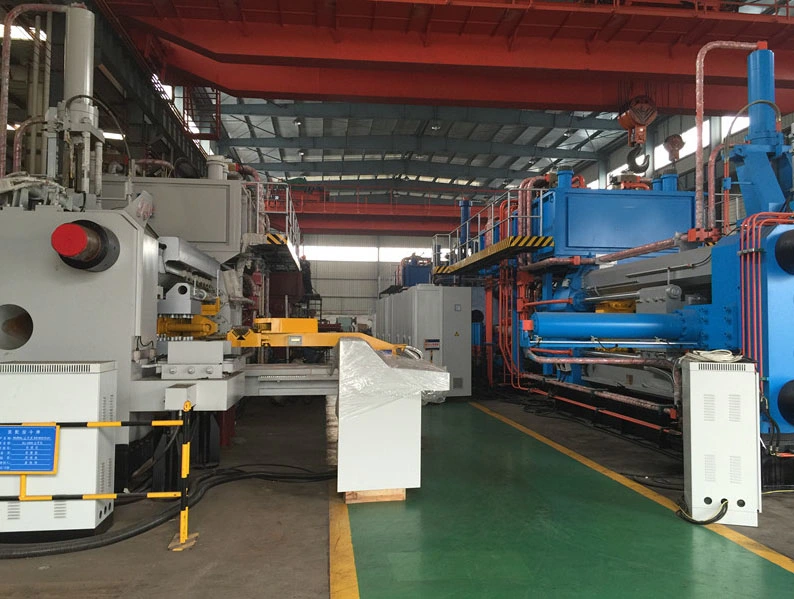

6.Project Case
Top Aluminium Alloy Direct Extrusion PressTop Aluminium Alloy Direct Extrusion Press
