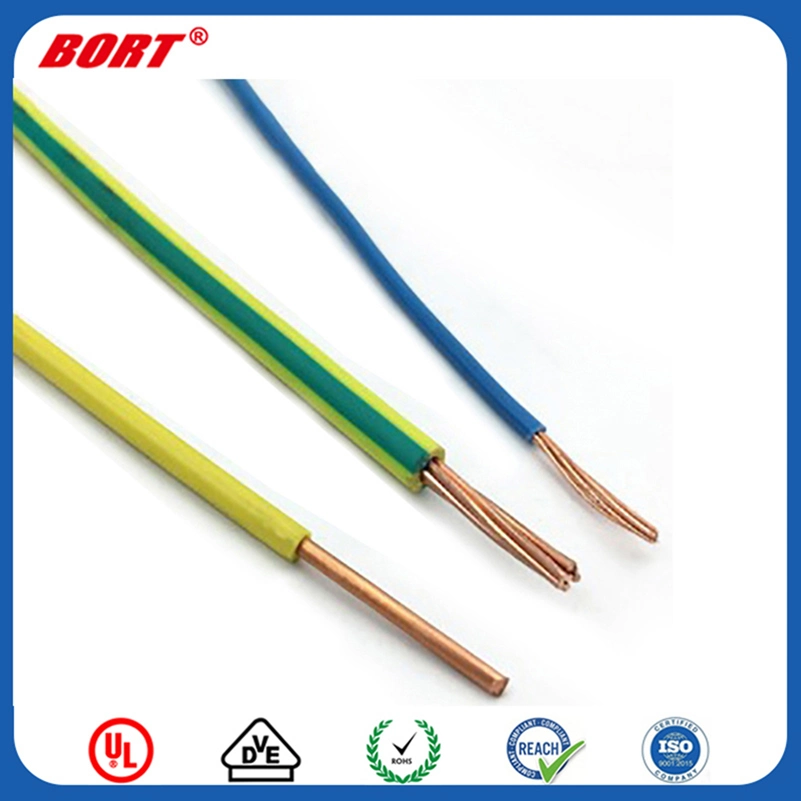

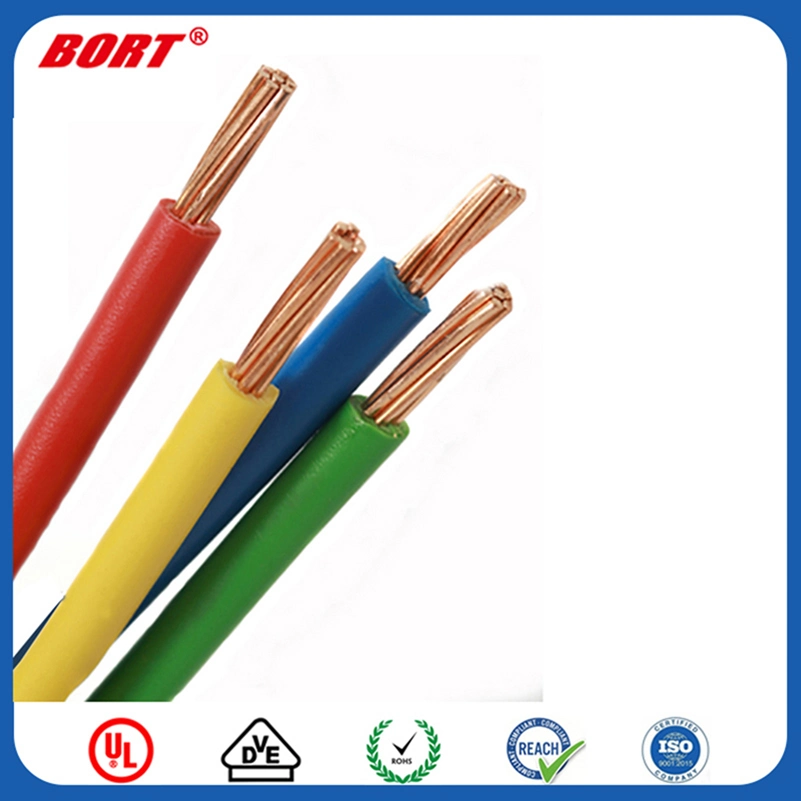

Electrical wire UL1430 16awg high temperature electronic wire UL inner lead wire
PRODUCT DESCRIPTION
★Rated temperature:105ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 30--16AWG
★XL-PVC insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For internal wiring of appliance
Features of Electronic Hook-Up Wire
The copper conductors are available in solid and stranded fashion.
The insulation can be color-coded and striped according to the client's preference.
We spool wire with short and long put-ups for added convenience.
The wire manufactured by us displays excellent uniformity, and it doesn't fray easily. This allows for ease of use, installation, stripping, and replacement.
The variety of materials offer resistance to corrosion, abrasion, extreme temperatures, oils, and harsh chemicals.
Advantages of Electronic Hook-Up Wire
Our clients can benefit from our electronic hook-up wire in the following ways:
Generally used in electronic appliances.
Can be used for general hook-up functions.
Specific high temperature hook-up wire can be used for high temperature applications.
Some insulating materials allow the wire to be self-extinguishing.
The extruded material can be chosen to provide flexibility or a tough exterior.
PRODUCT DESCRIPTION
★Rated temperature:105ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 30--16AWG
★XL-PVC insulation
★Passes UL VW-1&CSA FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★For internal wiring of appliance
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Thick. | Packing | |
| mm | mm | mm | m/r | Ω/mm | |
| 30 | 7/0.1 | 0.41 | 1.10 | 610 | 354.33 |
| 28 | 7/0.127 | 0.41 | 1.20 | 610 | 223.75 |
| 26 | 7/0.16 | 0.41 | 1.30 | 610 | 139.76 |
| 24 | 11/0.16 | 0.41 | 1.40 | 610 | 88.36 |
| 22 | 17/0.16 | 0.41 | 1.60 | 610 | 60.16 |
| 20 | 21/0.178 | 0.41 | 1.80 | 610 | 38.58 |
| 18 | 34/0.178 | 0.41 | 2.10 | 610 | 22.98 |
| 16 | 26/0.254 | 0.41 | 2.40 | 610 | 15.06 |
| 28 | 1/0.320 | 0.41 | 1.15 | 610 | 227.39 |
| 26 | 1/0.404 | 0.41 | 1.25 | 610 | 142.79 |
| 24 | 1/0.511 | 0.41 | 1.35 | 610 | 89.39 |
| 22 | 1/0.643 | 0.41 | 1.50 | 610 | 54.30 |
| 20 | 1/0.813 | 0.41 | 1.65 | 610 | 33.90 |
| 18 | 1/1.024 | 0.41 | 1.85 | 610 | 21.40 |
Features of Electronic Hook-Up Wire
The copper conductors are available in solid and stranded fashion.
The insulation can be color-coded and striped according to the client's preference.
We spool wire with short and long put-ups for added convenience.
The wire manufactured by us displays excellent uniformity, and it doesn't fray easily. This allows for ease of use, installation, stripping, and replacement.
The variety of materials offer resistance to corrosion, abrasion, extreme temperatures, oils, and harsh chemicals.
Advantages of Electronic Hook-Up Wire
Our clients can benefit from our electronic hook-up wire in the following ways:
Generally used in electronic appliances.
Can be used for general hook-up functions.
Specific high temperature hook-up wire can be used for high temperature applications.
Some insulating materials allow the wire to be self-extinguishing.
The extruded material can be chosen to provide flexibility or a tough exterior.
